Hot Press Machine for Producing Plywood

Hot Press Machine for Producing Plywood

Overview Hot press is one of the most important machines in the production of wood-based panels, which directly determin
Send to us
Overview
Basic Info.
Model NO. ULT-MDHP
Hot Platen Size 1370X2700X42mm/52mm
Close Time 25s
Diameter of Cylinder 360mm
Transport Package Plastic Wrap
Specification 3750x1370x4500mm
Trademark ULTRA D-TECH
Origin China
Production Capacity 30 Sets /Month
Product Description

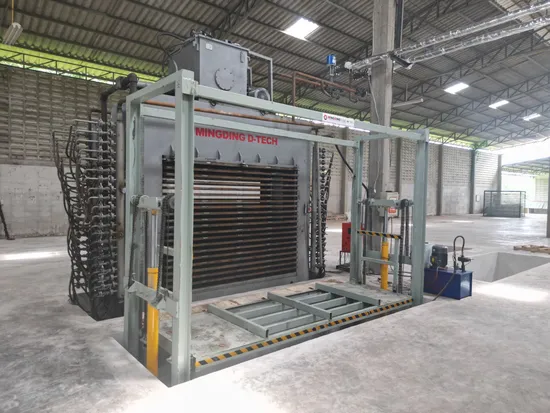

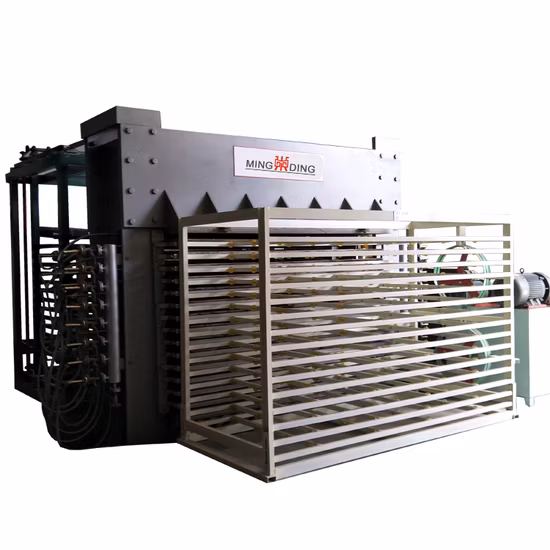

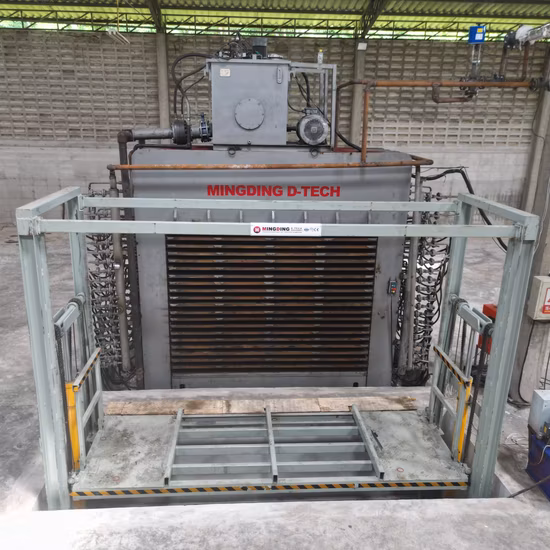

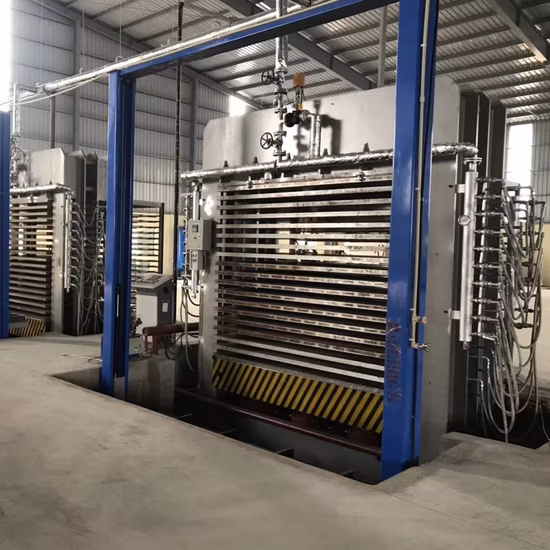

Hot press is one of the most important machines in the production of wood-based panels, which directly determines the production efficiency and quality of wood-based panels. After years of research and development, Mingding D-tech has launched a new generation of MDHP series. No matter from the frame of the steel plate, hot plate, cylinder, hydraulic station and other control systems are through the quality inspection department layer by layer.Our vision is that we don't need after-sales service because the quality of our products is good enough.

modelULT-MDHP500-15
Steel materialQ235BHigh pressure pump25ml
Structure steel thickness40mmMotor of high pressurepump18.5kw
The way of structure combinationSeparate frameHot platen materialQ235A
The way of feedCrossClose time 25 seconds
The high of the Up and down beam900mmPressure500TONS
Middle beam high400mmHot platen ManufacturerKunshan brand
the space of each hot platen70mmCylinder ManufacturerWuxi brand
The column width400mmHydraulic system1set
Cylinder diameter360mmx2Control systemPLC(SIMENS)
Stroke1050mmTotal weight33 TONS
Hot platen size1370x2700x42mm/52mm
